Product Introduction

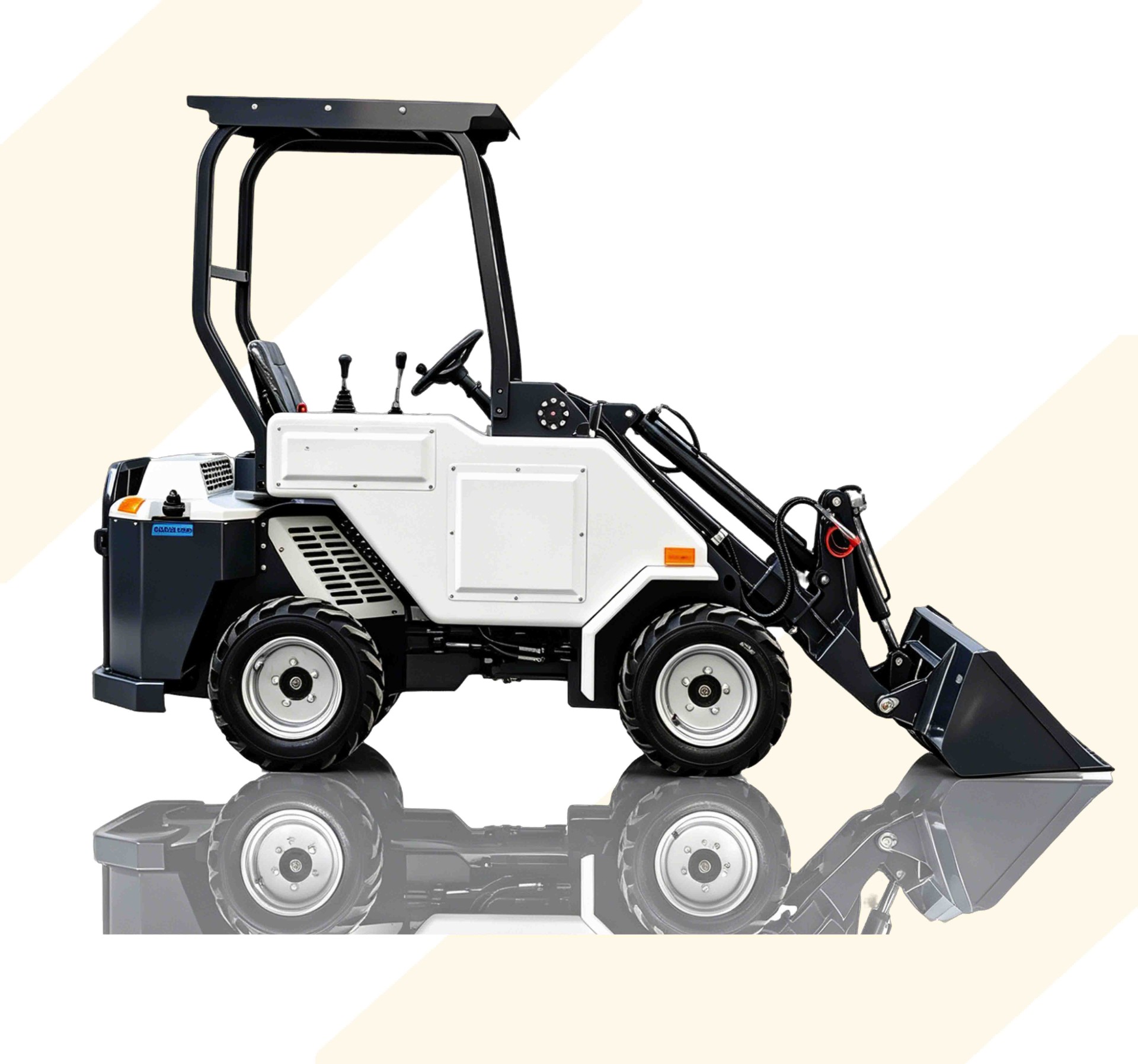

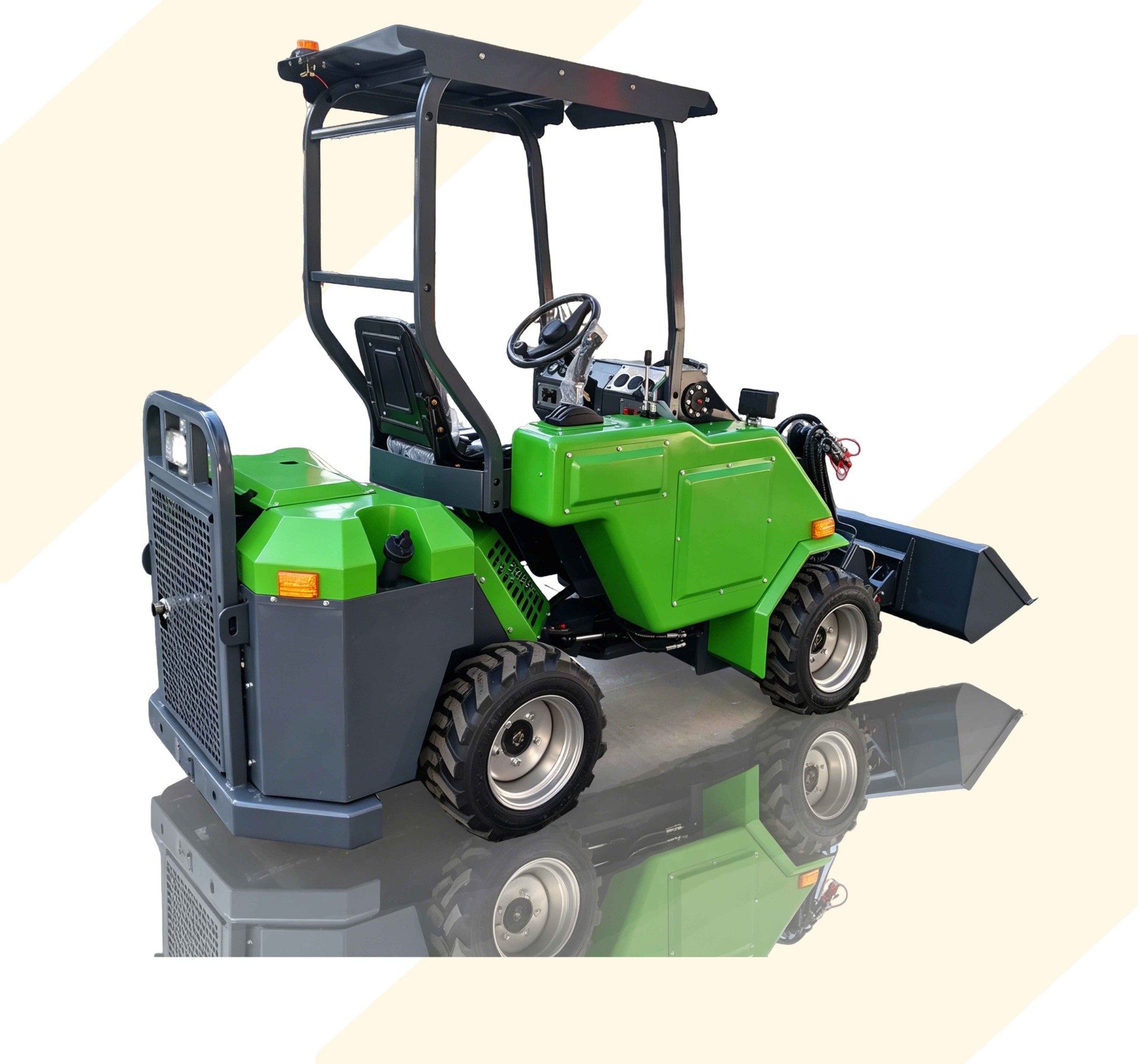

1. The XHS30 boasts a wide operational range: its extendable forearm enables the loader to perform loading, unloading, and handling operations over greater distances.
2. The articulated body design allows for flexible steering in confined spaces, such as when operating in narrow passages or environments with numerous obstacles.

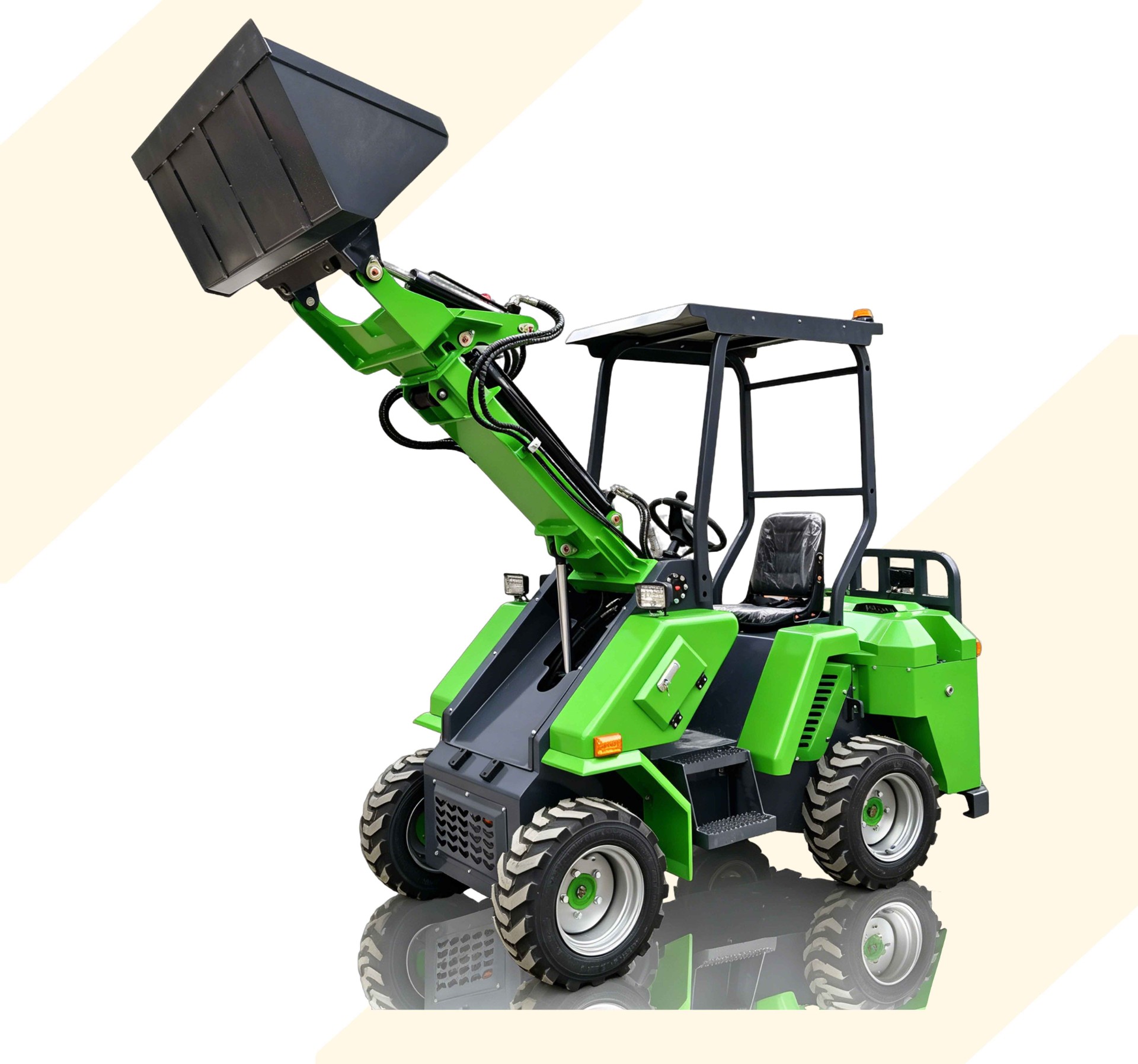

3. The telescopic arm design enables the loader to place materials more quickly at designated locations during loading and unloading operations, thereby improving operational efficiency.
4. Equipped with an advanced hydraulic control system, it enables precise control of the working device's movements, reducing operators' physical strain and improving operational accuracy.

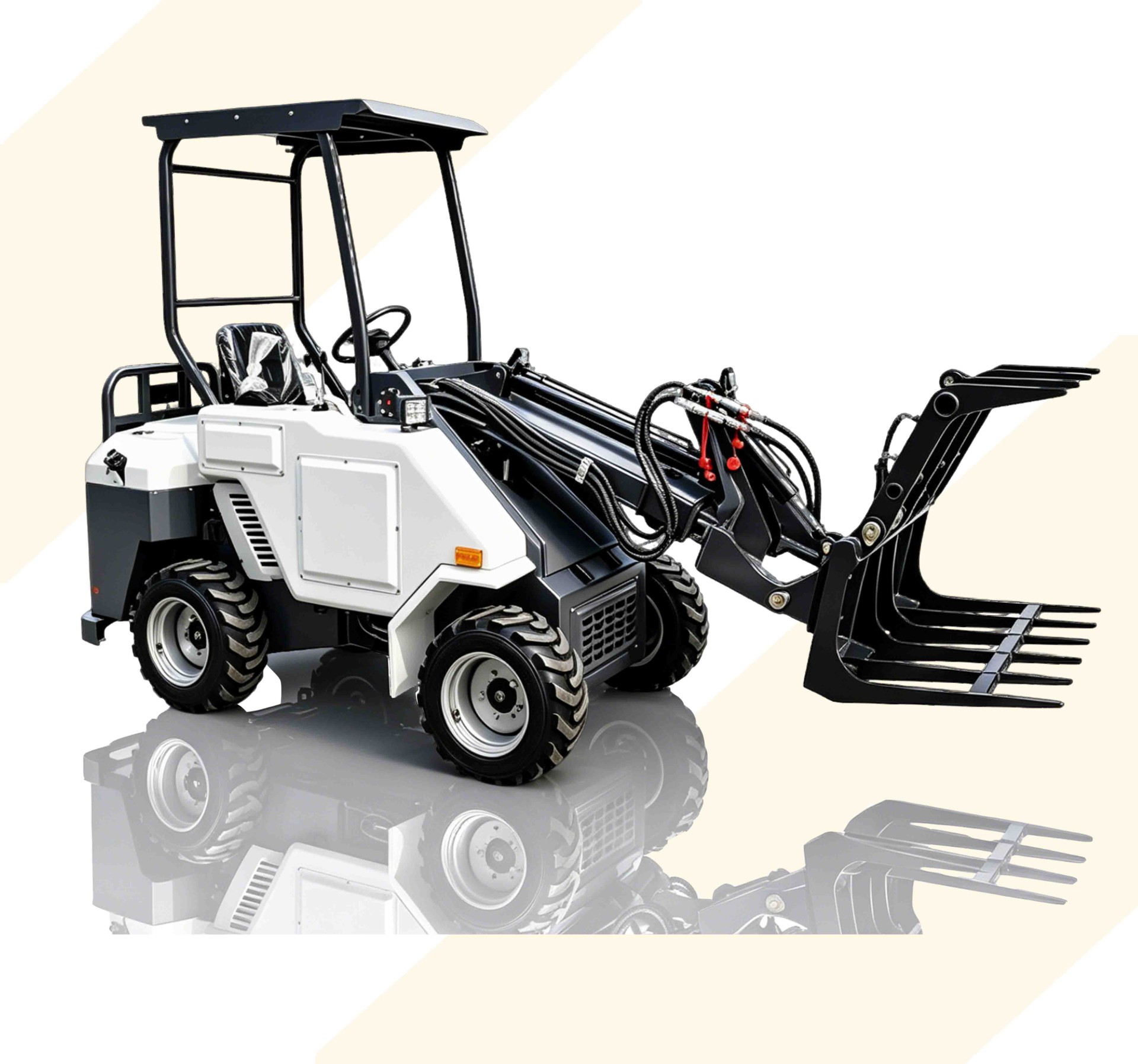

5. It can be equipped with various attachments such as forks, grabs, and crushing hammers, meeting the operational requirements of diverse working conditions.
Product Parameter
Model | XHS30 | ||
Size | Engine | ||
Maximum height of lift | 3350mm | Brand | Runtong 739 |
Maximum pin height | 2680mm | Horsepower RPM | 26HP/3600rpm |
Main arm dumping height (dumping angle 45 °) | 2000mm | Fuel tank volume | 30L |
Main arm tipping range | 1240mm | Hydraulic oil tank volume | 30L |
Maximum load-bearing capacity of the main arm | 800kg | Engine options (National II/EPA/Euro 5 standards) | |
Cuff hoisting height | 2680mm | Runtong 739/KePu 292/Bailitong 3864/Honda GX690/Kubota D1105 | |
Anterior forearm inversion height (inversion angle 45°) | 2300mm | Performance parameter | |
Maximum load capacity of the forearm frame | 600kg | Load | 500Kg |
Total length (bowl in ground position, forearm retracted) | 3380mm | Fistle volume | 0.3m3 |
Anterior forearm extension length | 570mm | Maximum speed | 9Km/h |
Total width | 1240mm | Net weight | 1450KG |
Overall height | 2250mm | Working weight | 2000KG |
Tread | 1360mm | Climbing capacity | 30% |
Minimum ground clearance | 190mm | Tire Type | 23*8.5-12 |
Turning radius | 2600mm | Driving Mode | 4-wheel drive |
Hydraulic pressure system | Transformation Method | Hydraulic articulated steering | |
System pressure | 25MPa | Export packing | |
Standard Data Traffic | 33L/min | Fumigation-free wooden box packaging | 3100*1350*1770mm |
