Product Introduction
1. The mini tracked dump truck is a powerful compact machine suitable for various working scenarios.
2. The centralized operating system is manufactured from high-quality steel through die-cutting process, featuring exceptional hardness, strength, and impact resistance.
3. Hydraulic lifting and unloading can reduce physical strain and improve transportation efficiency.

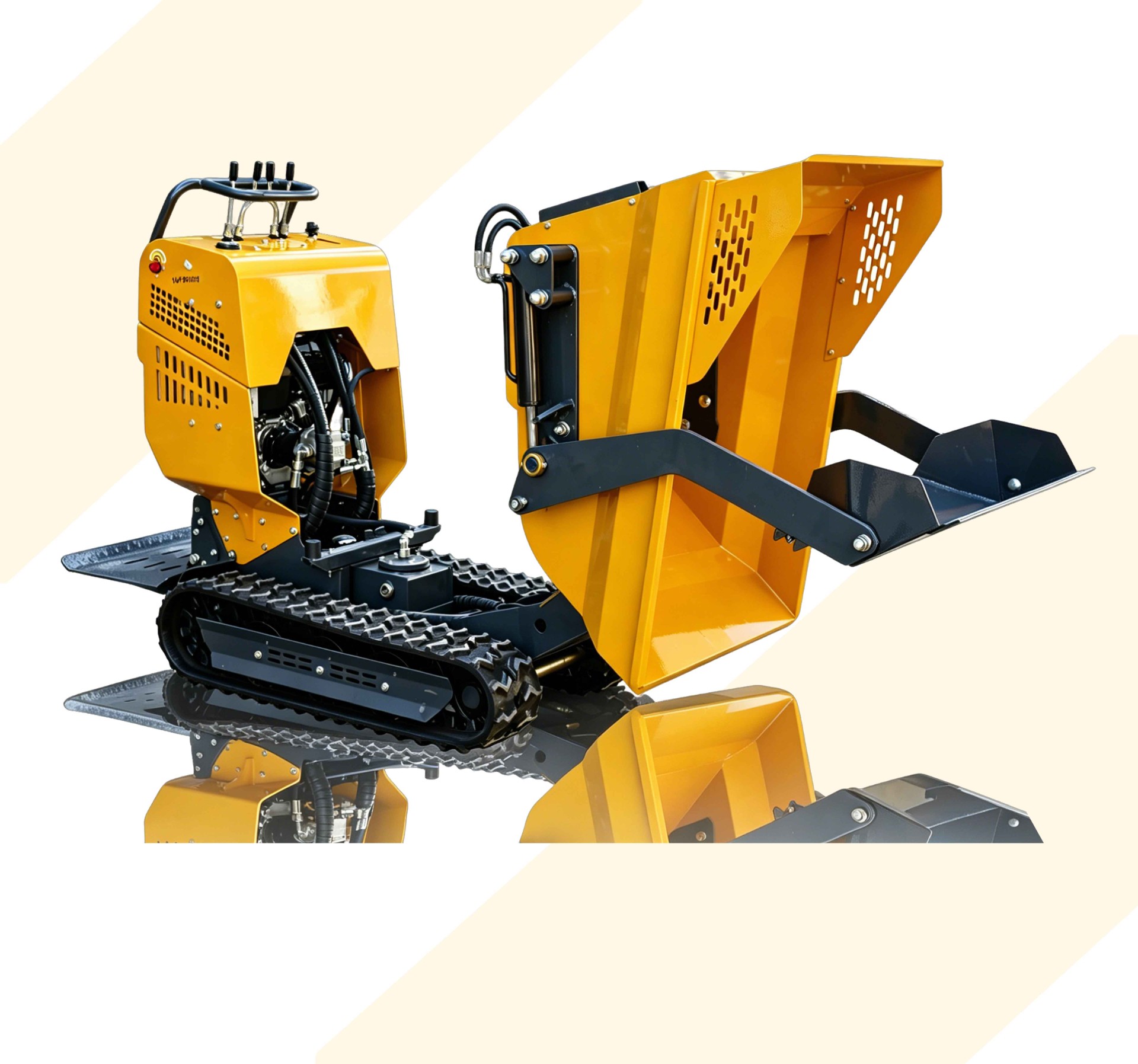

4. The vehicle body is stable, featuring a detachable hopper, guaranteed quality, and meticulous craftsmanship.
5. The butter nozzle stores butter and provides central lubrication, while the oil pipe is properly distributed to ensure efficient operation.
6. The foldable pedal ensures convenient operation. The product undergoes multiple inspections upon factory delivery to guarantee stable performance.
Product Parameters
Model | XHT500 | ||
Key dimension | Engine | ||
Net weight | 414kg | Power Model | Bailitong Pioneer 12V3 |
Maximum load capacity | 500kg | Power Source Type | Single-cylinder air-cooled four-stroke engine |
Box capacity | 200dm3 | Total displacement (ML) | 203CC |
Chassis width | 700mm | Rated power (HP/rpm) | 6.5HP/3600rpm |
Crawler width | 180mm | Fuel Type | 92 # Gasoline |
Crawler grounding length | 900mm | Fuel tank volume | 3.6L |
Chassis ground clearance | 110mm | Engine options | |
Tipping method | Hydraulic dump truck | Bailitong 19N1 / Kepu 173 / Runtong 212cc (For other engines, please consult separately.) | |
Tip angle | 90° | Size | |

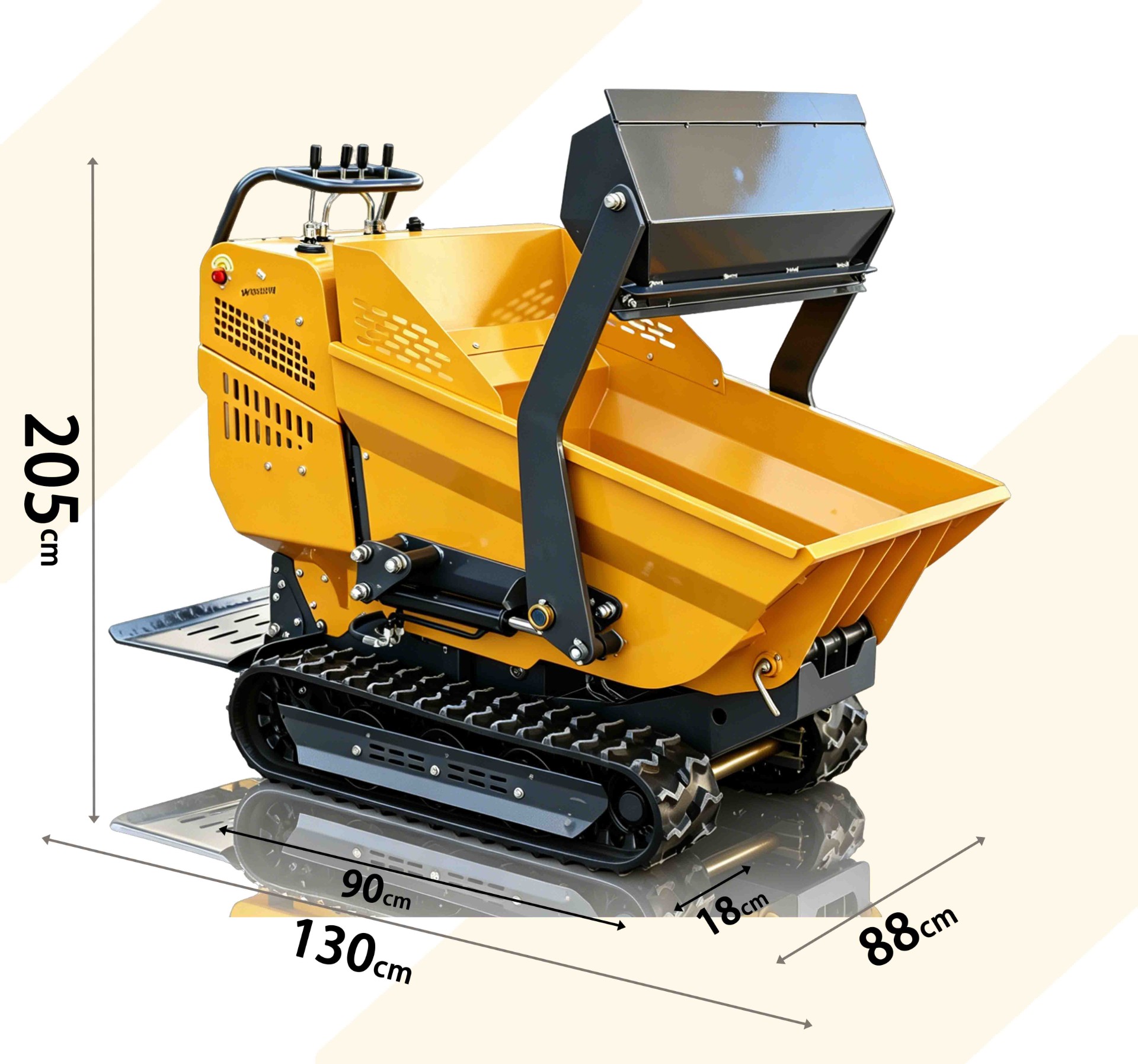

Unloading ground clearance height | 260mm | Overall dimensions of the machine | 2050*880*1300mm |
Walking Performance and Speed | 2.88km/h | Box dimensions | 1050*730*730mm |
Least radius of gyration | 1.15m | Packing measurement | |
Crawler center distance | 520mm | Fumigation-free wooden box packaging | 1630*940*1450mm |
Climbing capacity | 20° | Steel frame stacking packaging | 1570*980*2480mm |
