Product Introduction
1. The mini tracked dump truck is a powerful compact machine suitable for various working scenarios.
2. The centralized operating system is manufactured from high-quality steel through die-cutting process, featuring exceptional hardness, strength, and impact resistance.
3. Hydraulic lifting and unloading can reduce physical strain and improve transportation efficiency.
4. The vehicle body is stable, featuring a detachable hopper, guaranteed quality, and meticulous craftsmanship.

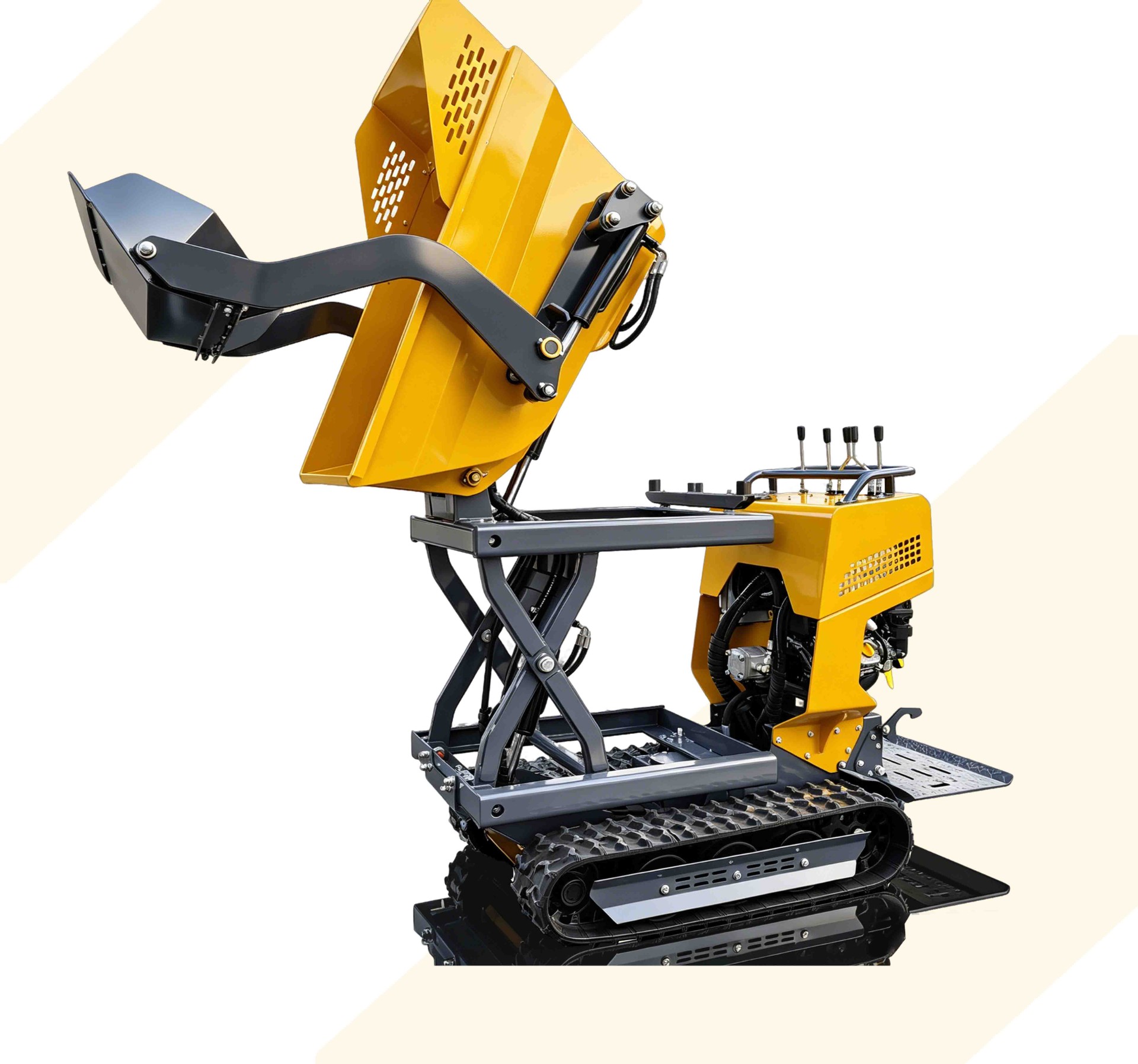

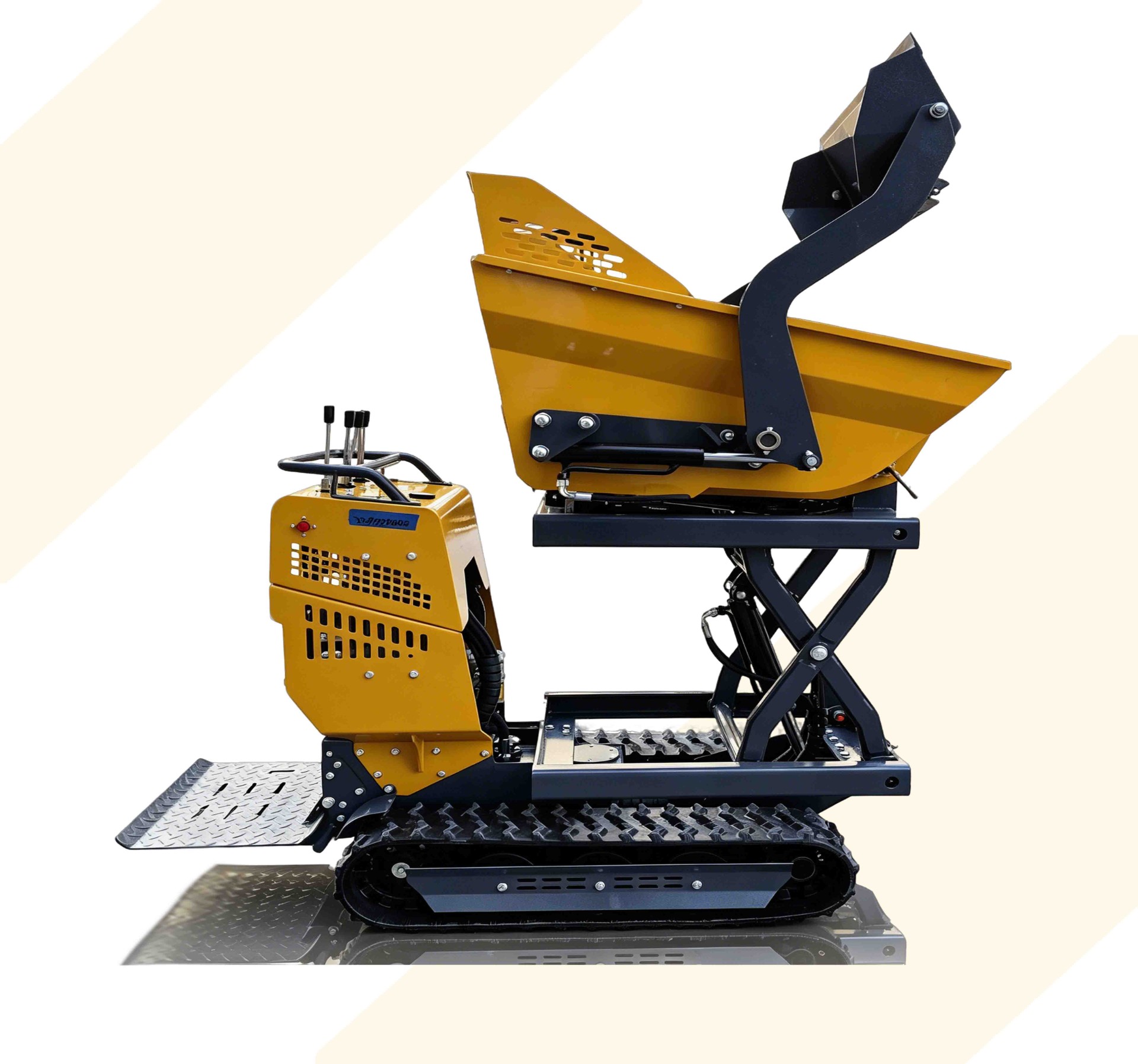

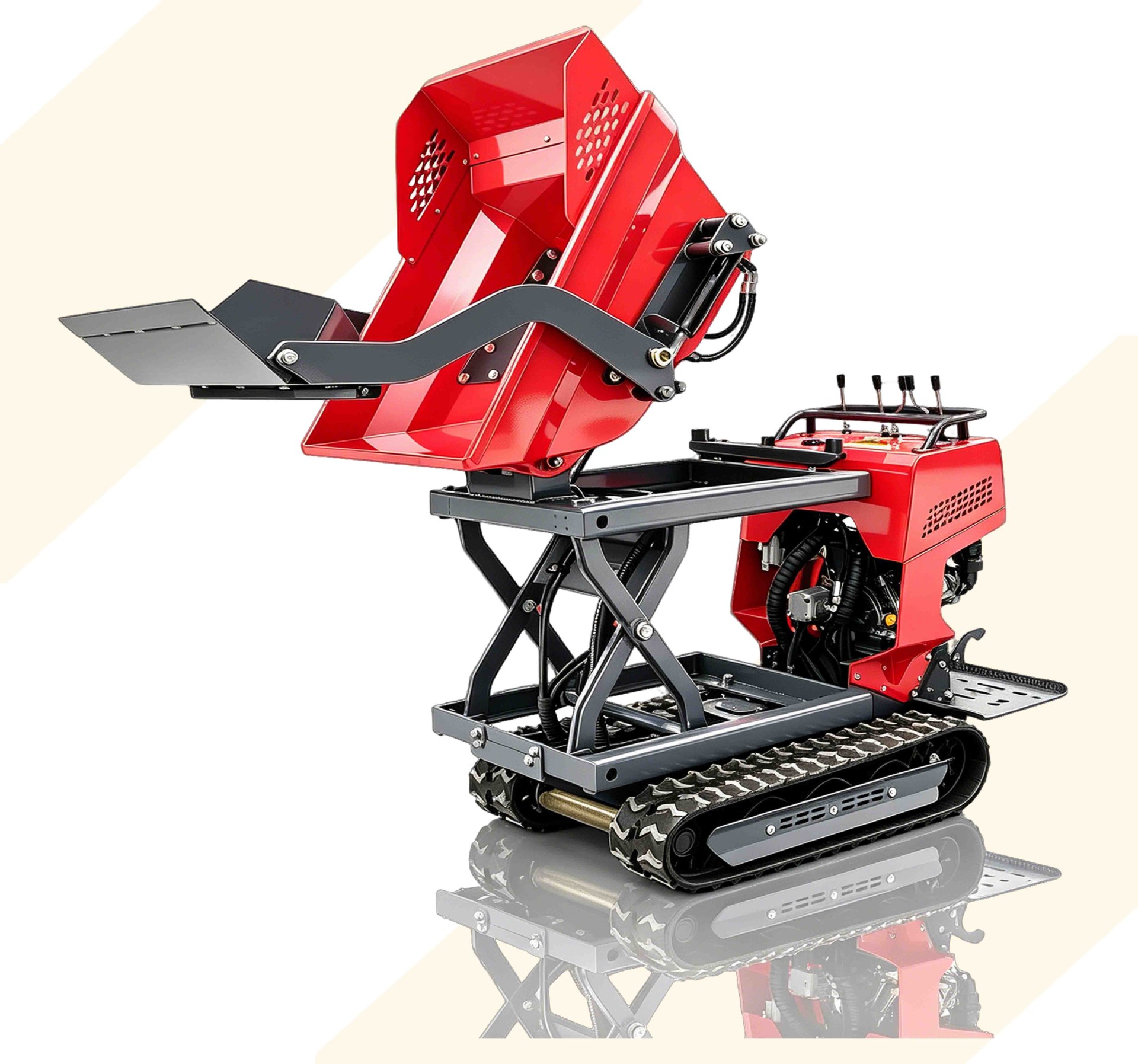

5. The integrated lifting system allows adjustment of the dump height to meet various loading and unloading requirements, facilitating connection with cargo platforms, transport vehicles, or storage containers of different heights.
6. The dump bucket has a large tilt angle, ensuring rapid and thorough material discharge while minimizing residual material.
Product Parameters
Model | XHT500S | ||
Key dimension | Engine | ||
Net weight | 535kg | Power Model | Bailitong Pioneer 12V3 |
Maximum load capacity | 500kg | Power Source Type | Single-cylinder air-cooled four-stroke engine |
Box capacity | 200dm3 | ||
Chassis width | 700mm | Total displacement (ML) | 203CC |
Crawler width | 180mm | Rated power (HP/rpm) | 6.5HP/3600rpm |
| Chassis ground clearance | 110mm | Fuel tank volume | 3.6L |
Tipping method | Hydraulic dump truck | Engine options | |
Tip angle | 90° | Bailitong 19N1/Kepu 173/Runtong 212cc (For details on the remaining engines, please consult separately.) | |
Maximum increase | 1200mm | ||
Unloading ground clearance height | 1050mm | Size | |

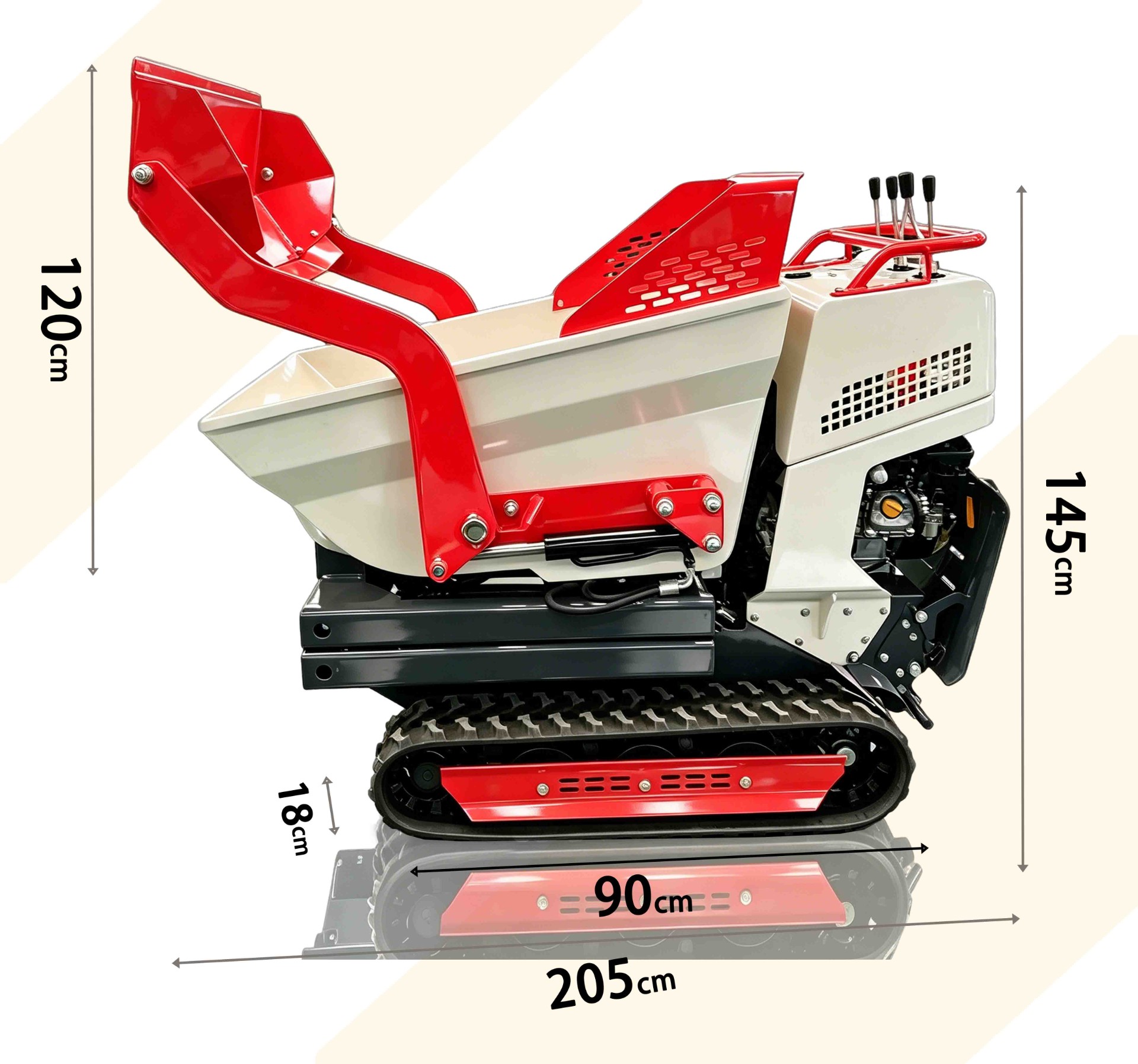

Flip interval | 220mm | Overall dimensions of the machine | 2050*880*1450mm |
Walking Performance and Speed | 2.88km/h | Box dimensions | 1050*730*730mm |
Least radius of gyration | 1.15m | Packing measurement | |
Crawler center distance | 520mm | Fumigation-free wooden box packaging | 1630*940*1450mm |
Climbing capacity | 20° | Steel frame stacking packaging | 1570*980*2480mm |
