Product Introduction
1. The rotating tipper truck enables the tipper to rotate, allowing for precise material discharge into designated locations at various orientations during unloading.
2. The centralized operating system is manufactured from high-quality steel through die-cutting process, featuring exceptional hardness, strength, and impact resistance.
3. Hydraulic lifting and unloading can reduce physical strain and improve transportation efficiency.
4. The rotation function enhances the flexibility and mobility of the dump truck during operation.
5. By rotating the dump bucket, materials can be discharged into different corners or construction areas, enhancing both the accuracy and convenience of the unloading process.
6. The dump bucket has a large tilt angle, ensuring rapid and thorough material discharge while minimizing residual material.
Product Parameters
Model | XHT1200 | ||
Key dimension | Engine | ||
Net weight | 700kg | Power Model | Bailitong 25T2 |
Maximum load capacity | 1200kg | Power Source Type | Single-cylinder air-cooled four-stroke engine |
Box capacity | 594dm3 | ||
Chassis width | 850mm | Gross exhaust gas （ML） | 420CC |
Crawler width | 180mm | Rated power (HP/rpm) | 13.5HP/3600rpm |
Crawler grounding length | 1000mm | Fuel Type | 92# gasoline |
Chassis ground clearance | 110mm | Fuel tank volume | 6.5L |
Tipping method | Hydraulic dump truck | Engine options | |
Tip angle | 90° | Bailitong 25T2 / Kepu l92 / Honda GX390 / Runtong 420cc (For details on the remaining engines, please consult separately.) | |
Maximum rotation angle | 180° | ||
Rotation Method | Hydraulic rotation | Size | |

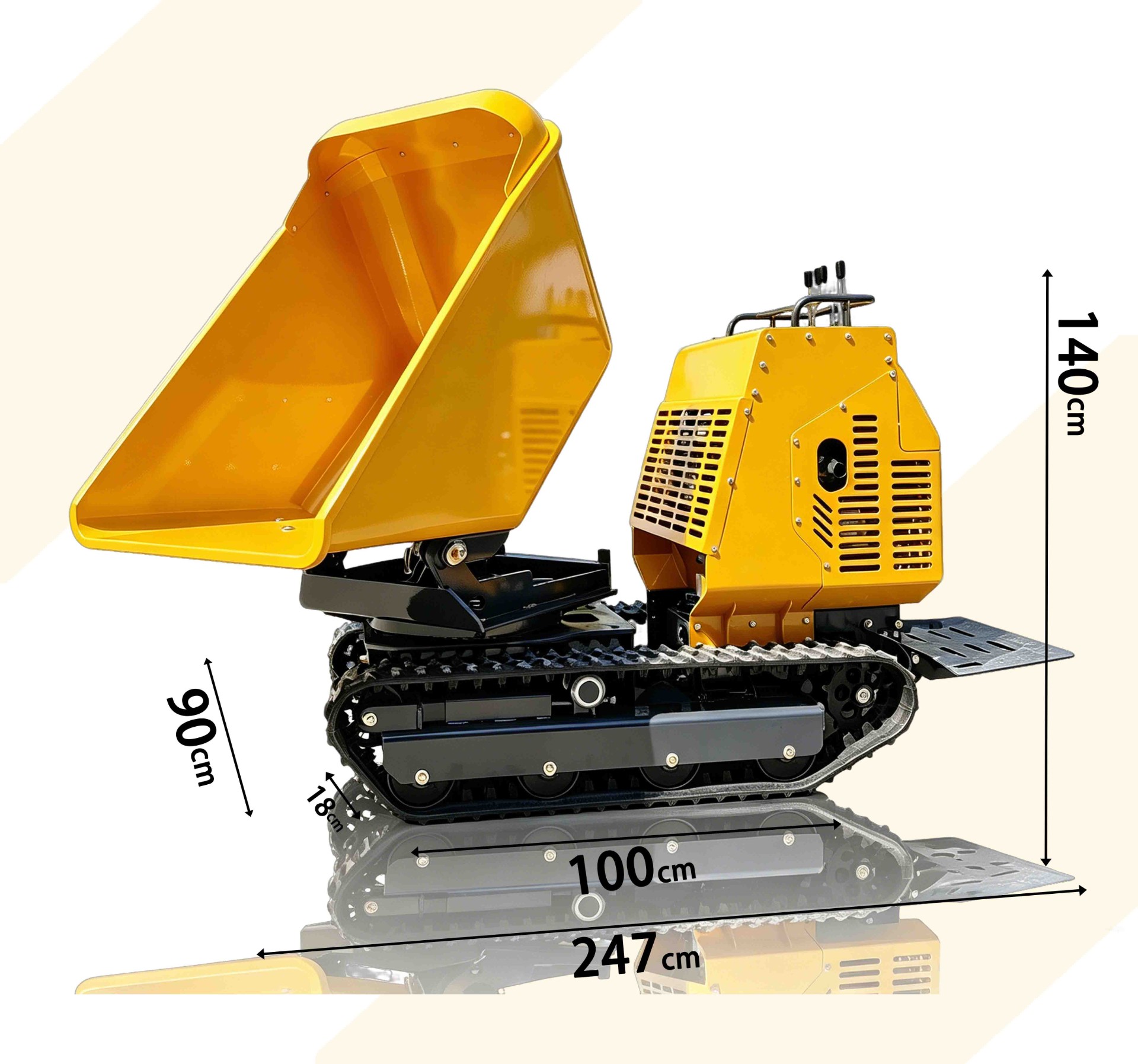

Flip interval | 320mm | Overall dimensions of the machine | 2470*900*1400mm |
Walking Performance and Speed | 5km/h | Box dimensions | 1300*800*600mm |
Least radius of gyration | 1300mm | Packing measurement | |
Crawler center distance | 670mm | Fumigation-free wooden box packaging | 2100*930*1360mm |
Climbing capacity | 20° | Steel frame stacking packaging | 2000*960*2560mm |
