Product Introduction
1. The rotary support is constructed from alloy steel, which exhibits high toughness and greater density, making it suitable for heavy-duty machinery subjected to high loads and high-speed rotation.
2. High sensitivity and precise control: The control signals of the multifunctional handle are highly sensitive, enabling accurate control of the construction machinery's movements and actions while minimizing operational errors.
3. The structural components are fabricated from steel conforming to national standards, exhibiting high strength and excellent toughness. This ensures optimal welding quality while guaranteeing the structural stability and safety.
4. Construction machinery tires possess high load-bearing capacity, ensuring stable machine operation and enhancing operational efficiency and safety.
5. The seats feature adjustable, shock-absorbing leather seats that are comfortable and durable, helping to reduce d river fatigue.
6. Excellent visibility: The driver's seat is positioned higher, providing an expansive field of view that allows clear observation of the surrounding environment, thereby reducing operational safety hazards.
Product Parameters
Model | XHT3000 | ||
Engine | Bunker | ||
Power Model | Kubota D1105 | Box rotation angle | 180° |
Power Source Type | Three-cylinder water-cooled engine | Unloading height | 750mm |
Ground clearance | 290mm | ||
Power rating | 25HP/2800rpm | Turning radius | 5000mm |
Fuel Type | Diesel oil | Flip interval | 610mm |
Fuel tank volume | 35L | Walk | |
Weight | Walking Performance and Speed | 12km/h | |
Body weight | 2150kg | Climbing capacity | 30° |
Maximum load capacity | 3000kg | Tire Type | 12-16.5 |

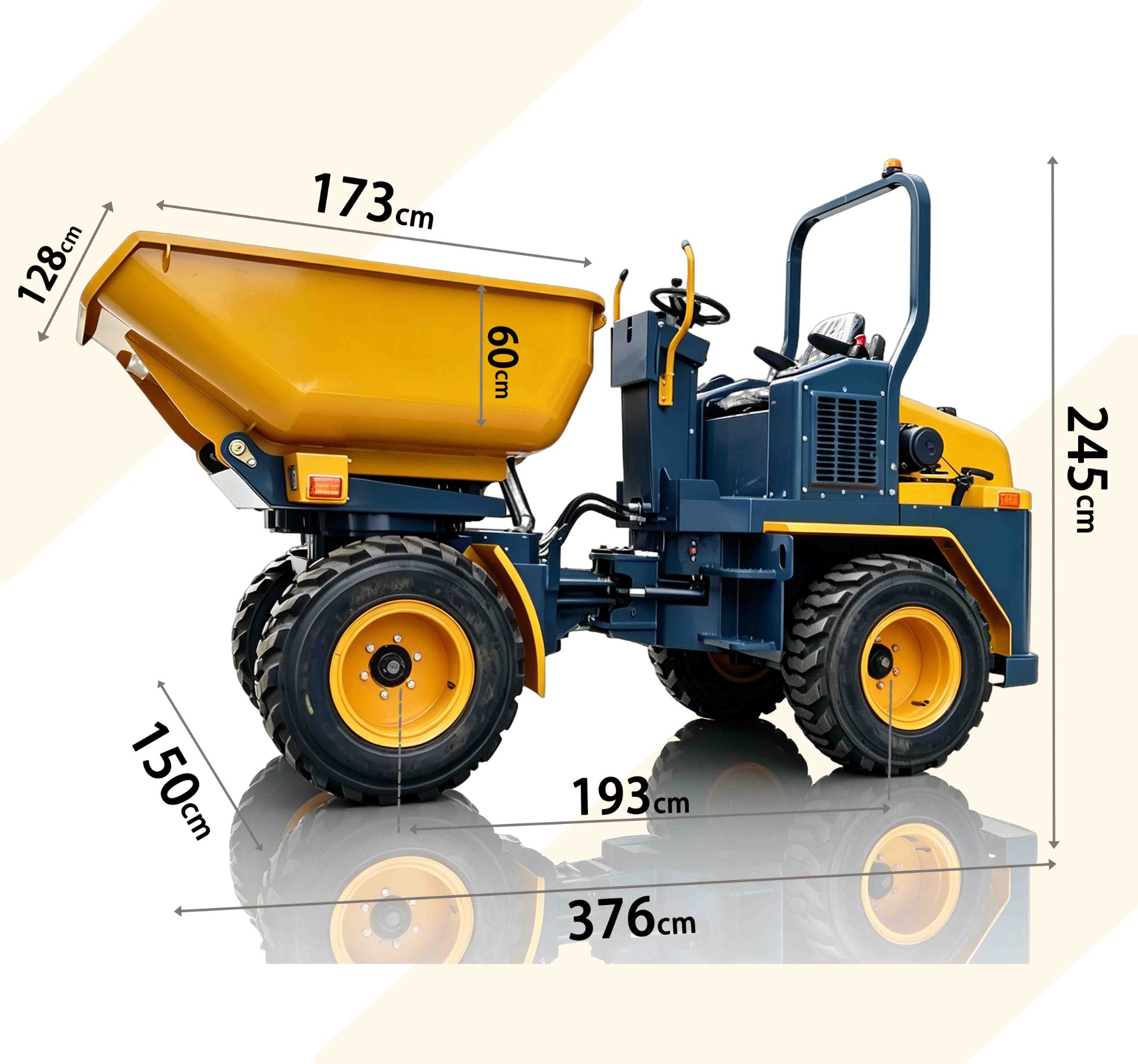

Body size | 3760*1500*2450mm | Wheel base | 1930mm |
Box dimensions | 1730*1280*600mm | Hydraulic fluid | |
Total width of the machine | 1500mm | Hydraulic oil grade | 46# |
Bunker | Hydraulic oil tank volume | 35L | |
Box capacity | 1.28m3 | Engine options (National II/National IV/EPA/Euro 5) | |
Tipping method | Hydraulic pressure | Changchai 390/Changchai 3M78 | |
Tip angle | 90° | ||
