0.4T Mini Telescopic Electric Loader-XHD04T/XHDL04T

Product Introduction

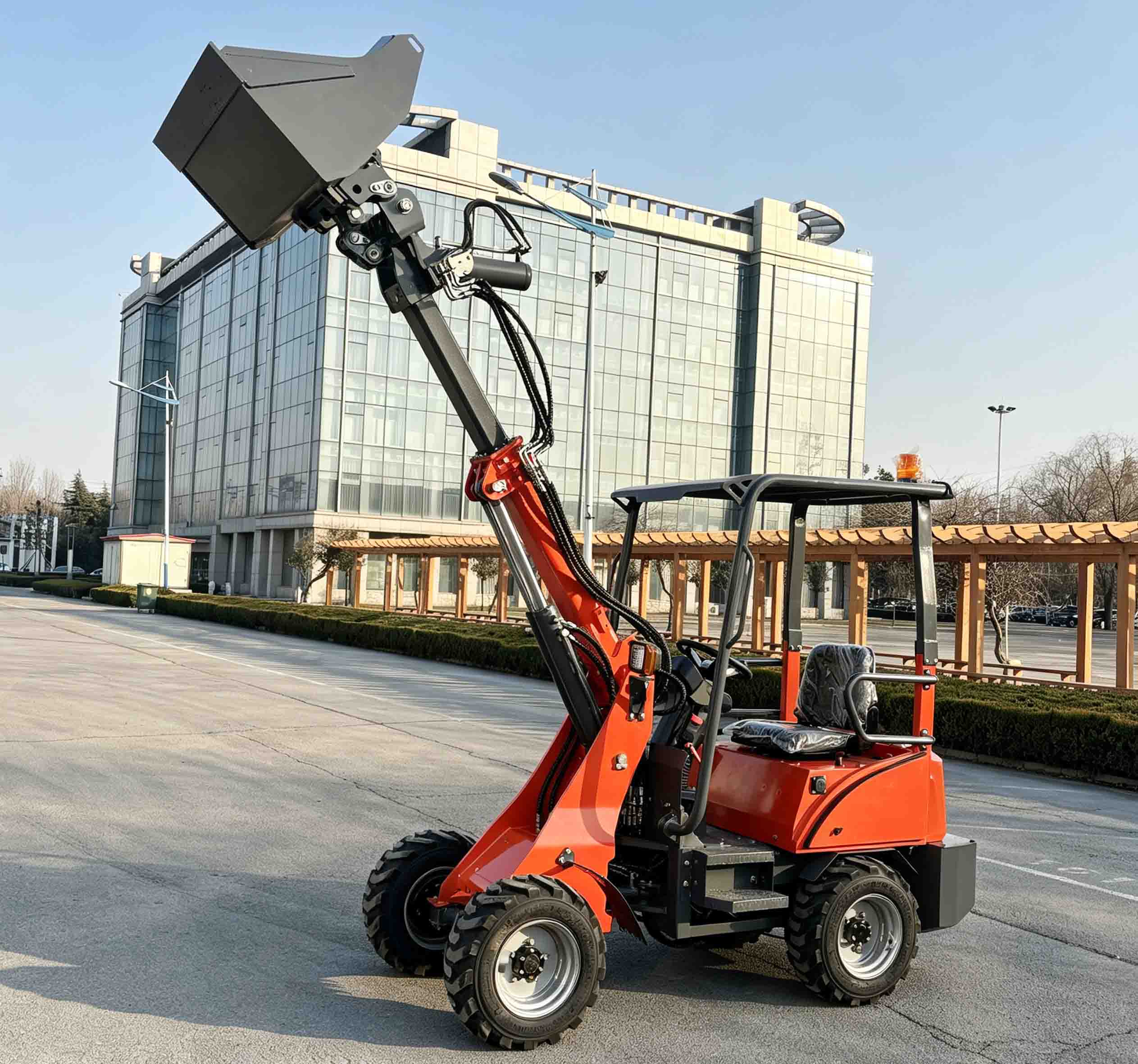

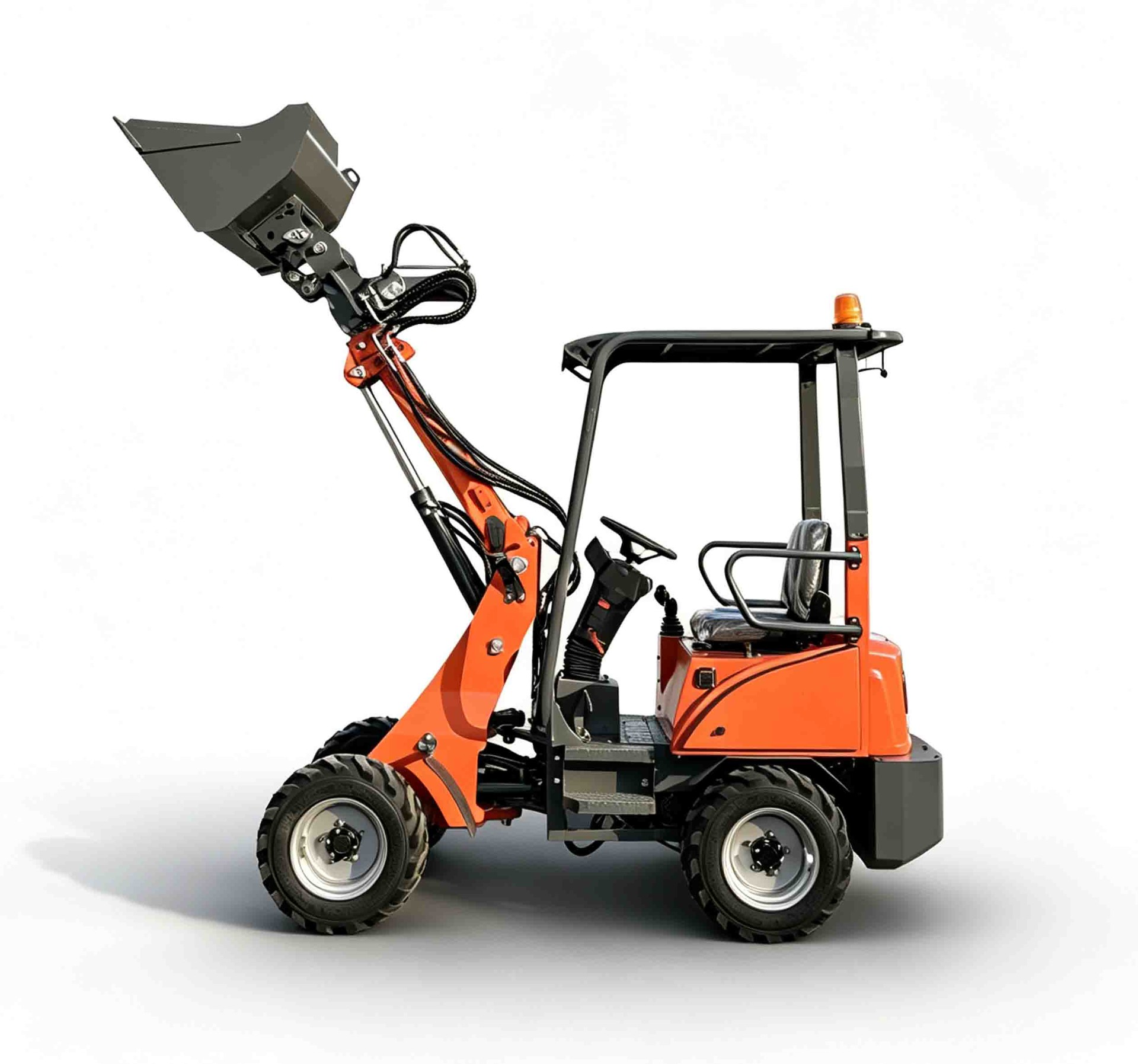

The XHD04T Mini Telescopic Electric Loader is a compact electric telescopic wheel loader designed specifically for narrow workspaces and high-frequency light-load operations. Leveraging pure electric drive technology and a telescopic boom structure, it combines the core advantages of eco-friendliness, flexibility, high efficiency, easy operation, and low maintenance. It is widely applicable to diverse scenarios such as landscaping, greenhouse operations, small construction site transfers, warehouse handling, and workshop material transport.

Core Advantages

1. Eco-Friendly & Energy-Saving

Zero Emissions: Powered entirely by electricity, the machine produces no exhaust emissions during operation, making it ideal for enclosed or semi-enclosed environments with strict air quality requirements, such as indoor areas, warehouses, and workshops.

Low Noise: The motor operates at significantly lower noise levels compared to traditional fuel-powered loaders, effectively reducing noise pollution on-site, improving the working environment, and minimizing disturbances to operators and nearby personnel.

Low Energy Consumption: Electric energy boasts high conversion efficiency. Combined with energy-saving designs integrated into the system, energy consumption is substantially reduced compared to equivalent fuel models—with over 60% lower energy costs—and there is no idle loss, ensuring excellent long-term economic benefits.

2. Compact & Flexible

Small Footprint, High Maneuverability: With an overall length of only 3460mm and a height of 1040mm, the machine can easily navigate narrow spaces such as aisles in small warehouses, workshops, and confined construction sites. It features agile steering and a small turning radius, allowing for effortless turning and U-turns.

Telescopic Boom Expands Working Range: Equipped with a telescopic boom, it offers optional lifting heights (2630mm/3310mm) and dumping heights (1750mm/2450mm), with a maximum dumping reach of 700mm. This accommodates both close-range stacking and high-level loading/unloading needs, significantly expanding the operational coverage.

Optimal Load Capacity for Target Scenarios: The 400kg rated load is perfectly suited for handling and loading/unloading small-sized goods, meeting daily operational demands without being too heavy to maneuver in confined spaces.

3. Easy to Operate

The electronic control system is straightforward, featuring ergonomically designed control levers and buttons. Operators can quickly master the operation skills with minimal training, lowering the entry barrier for personnel and enhancing scheduling flexibility.

4. Low Maintenance Cost

Simplified Structure: Compared to fuel loaders, the XHD04T eliminates complex components such as engines, gearboxes, and drive shafts. This reduces the likelihood of mechanical failures and simplifies maintenance procedures.

Extended Maintenance Intervals: Key components like the motor and battery have a long service life and do not require frequent replacement of consumables (e.g., engine oil, filters). This minimizes equipment downtime and improves operational efficiency.

5. High Safety Standards

Equipped with dual drum-type service and parking brakes, the machine delivers responsive braking performance for reliable short-distance stops, ensuring the safety of both operators and equipment. The full hydraulic steering system provides stable and precise control even in complex working conditions.
