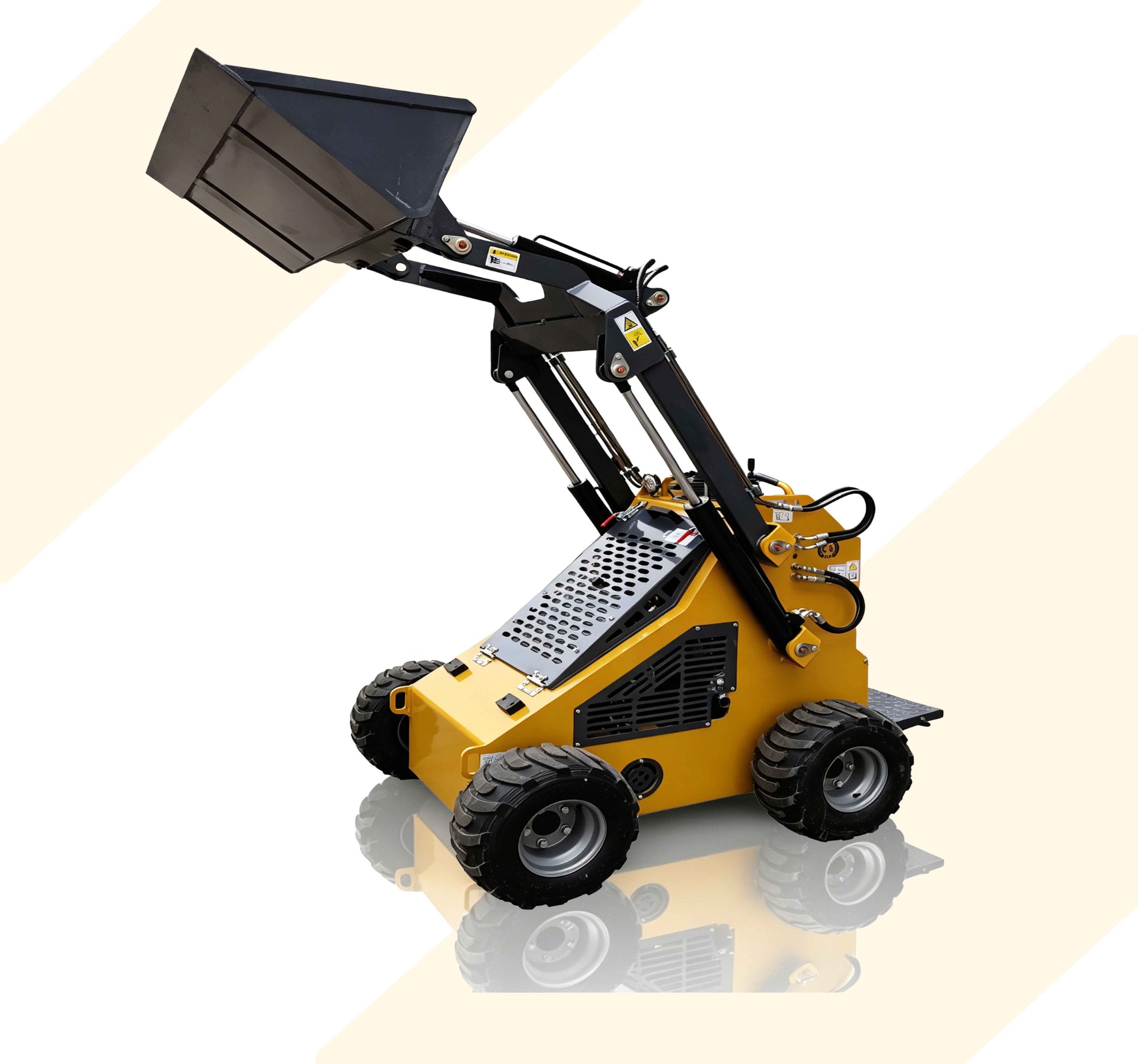

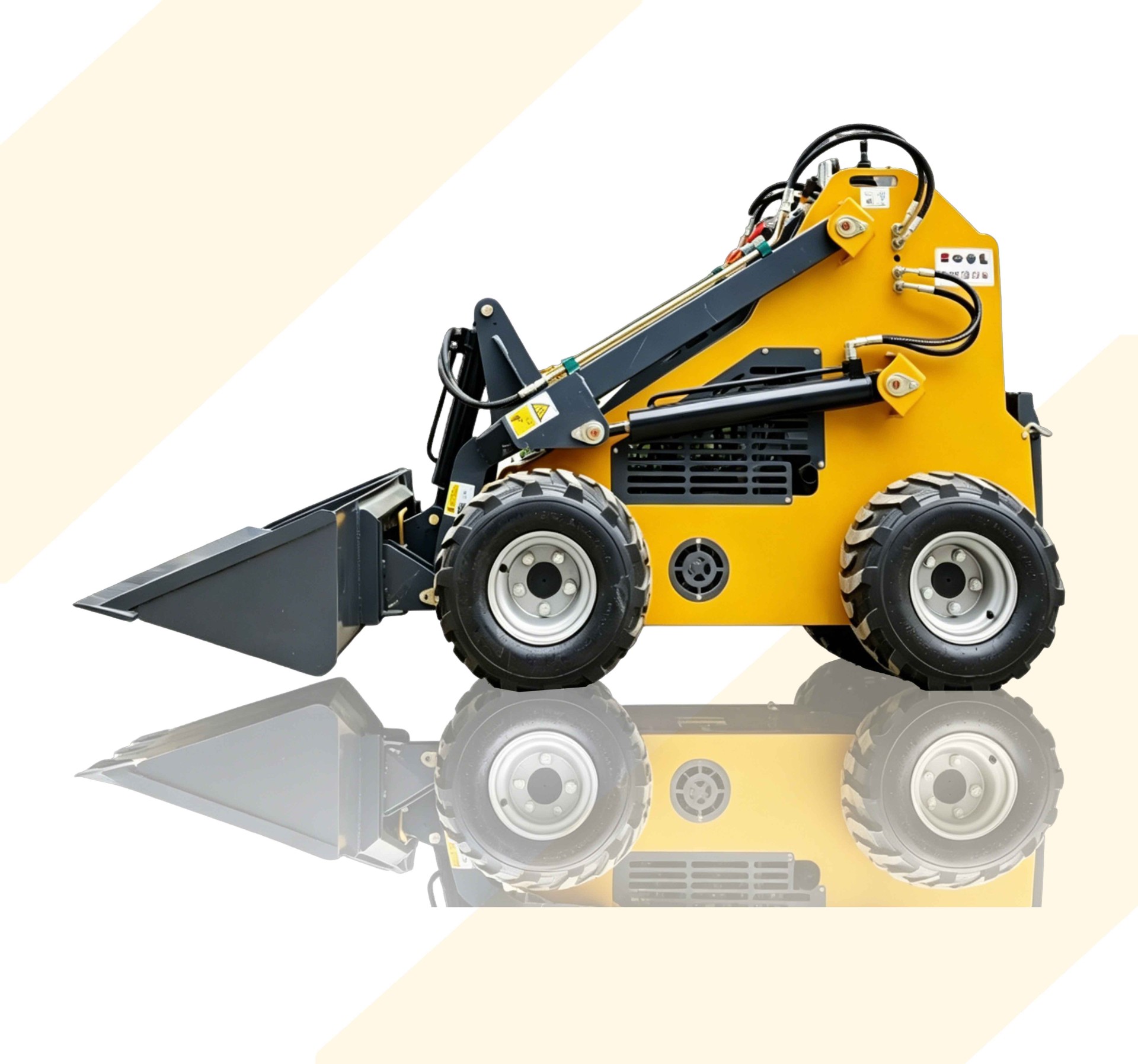

Product Introduction
1.The XHS380 small sliding loader can be equipped with engines of different emission standards meeting the EPA/Euro V emission standards.
2. The model is compact and suitable for construction work in narrow spaces such as homes, farms, and construction sites. It is operated by a handle and is easy to learn.
3. It can be paired with variousauxiliary tools to achieve multi-functional construction. The hydraulic auxiliary tools are equipped with quick-change connectors, making operation more convenient.
4.The boom is equipped with a quick-connect plate,allowing for quick switching of various auxiliarytools.
5. Thethickened hydraulic oil pipe ensures smooth operation and stable running.
Product Parameter
Model | XHS380 | ||
Size | Engine | ||
Maximum working height | 2200mm | Brand | Runtong 739 |
Maximum pin shaft height | 1900mm | Engine speed | 26HP/3600rpm |
Maximum discharge height | 1560/1800mm | Fuel tank capacity | 28L |
Highest point discharge distance | 348mm | Hydraulic oil tank capacity | 20L |
Bucket swing angle | 55 ° | The engine is available with optional configurations (GB2/EPA/EU5) | |
Bucket discharge angle | 30 ° | Runtong 739/Koop 292/Briggs & Stratton 3864/Honda GX690 | |
Receiving bucket angle | 25 ° | ||
Departure angle | 11 ° | Performance parameters | |
Overall height | 1350mm | Maximum load capacity | 380KG |
Ground clearance height | 100mm | Bucket volume | 0.15m3 |
Wheel base | 860mm | Maximum digging force | 550Kg |
Bucketless length | 1780mm | Speed | 0-5.5Km/h |
Overall width | 1200mm | Net weight ofthe machine | Wheeled model: 820 kg; Crawler model: 910 kg |
Overall length(withbucket) | 2500mm | Traction force | 520KG |
Front turning radius | 1307mm | Angle of slope climbing | 30 ° |
Hydraulic system | Tire/Track Model | ||
System pressure | 17MPa | Trussed engineering belt | 18*8.5-8 |
Standard flow rate | 25L/min | Track mode | 180*60*46 |
Pumping pump flow rate | 22L/min | Export packaging | |
Refling pump flow rate | 10L/min | Vapor-free wooden box packaging | 2070*1250*1460mm |
Working system | 44L/min | Stacked steel frame packaging | 2190*1200*2540mm |
